Field Note · N° 05 · Format guide
Which video tape do you actually have?
Every box of family tapes we open contains at least one cassette the owner couldn’t name. That’s normal: between the 1970s and the 2000s, consumer video went through half a dozen incompatible formats, several of which look confusingly similar. Here is how to tell them apart with the cassette in your hand, using nothing but its size and a few shell details.

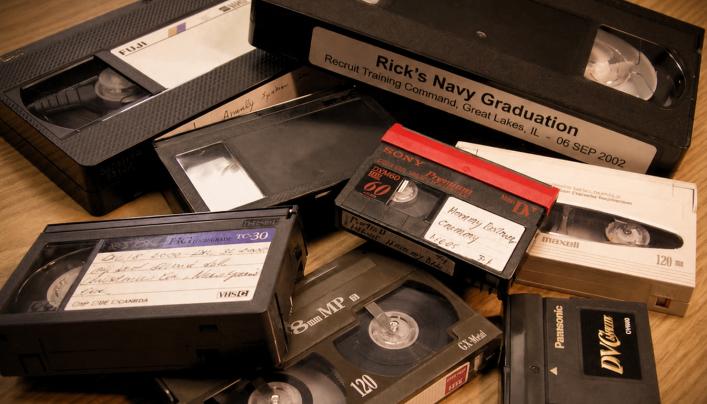

The one-line trick: measure the width. VHS-family shells are about 7.4 inches wide, Betamax about 6.1, the 8mm family about 3.7, and MiniDV a tiny 2.6. Everything else is detail.
VHS: the big one (7.4 × 4 inches)
The default home format from the early 1980s through the 2000s. Large black shell, flip-up door on the front edge, a white or clear window showing two reels. If it went into the living-room VCR, it’s VHS.
S-VHS looks identical but has a small extra hole on the underside near the label edge and usually says “S-VHS” on the shell. Higher resolution recording; needs an S-VHS-capable deck to capture what’s really on it.
Both are our daily work: see VHS digitization.
VHS-C: the small one that fits the big one (3.6 × 2.3 inches)
A palm-sized cassette with the same tape as VHS inside, made for 1980s–90s camcorders. The giveaway: it’s the only small cassette with a visible geared wheel on the back face, and it often came with a VHS-shaped adapter shell. If you found a small tape rattling inside a full-size VHS “case” with a door: that case is the adapter, and the tape is VHS-C.
People regularly mistake VHS-C for MiniDV. Check the size: VHS-C is noticeably bigger, and MiniDV never has a gear wheel. VHS-C is captured on the same line as VHS here, same per-tape price.
The 8mm family: Video8, Hi8, Digital8 (3.7 × 2.4 inches)
Sony’s camcorder line from 1985 into the mid-2000s. A squarish cassette a bit bigger than an audio cassette, with a sliding metal or plastic door along the top edge. All three generations use the same shell, so read the printed label:
- Video8: says “Video8” or just “8mm”. Analog, the earliest of the three.
- Hi8: says “Hi8” or “Hi8 MP/ME”. Analog, sharper.
- Digital8: says “Digital8” or was recorded in a Digital8 camcorder (often on tapes labeled Hi8 — the format is defined by the camera, not the shell). Digital signal, transferred losslessly over FireWire.
If you can’t tell Hi8 from Digital8, don’t worry: we check on our decks and capture each the right way. Details: Video8, Hi8 and Digital8 digitization.
MiniDV: the tiny digital one (2.6 × 1.9 inches)
The smallest cassette you’ll find, from late-1990s and 2000s camcorders. Matchbox-sized, usually with “MiniDV” or the DV logo molded into the shell. The recording is already digital, which is why proper capture is a lossless FireWire transfer, not a re-recording. One caveat: tapes recorded in HDV mode (HD on a MiniDV shell) are a distinct format; mention it when ordering and we’ll confirm equipment first. Details: MiniDV digitization.
Betamax: the one we’ll be honest about (6.1 × 3.75 inches)
Sony’s home format that lost the 1980s format war to VHS. Smaller than VHS, chunkier proportions, and the tape window sits off-center. If your recordings are from before roughly 1988 and the cassette doesn’t fit a VCR, Betamax is the likely answer.
Straight answer: we don’t digitize Betamax in-house. Working Betamax decks are rare, and doing rare formats badly isn’t our style. If you have Betamax, U-matic or another professional format, contact us first: we’ll tell you honestly whether we can help and, if not, point you toward a specialist who handles that format properly. No tape should be captured on the wrong equipment just to close a sale.
The quick reference
- Big shell, fits the VCR: VHS (or S-VHS if it has the extra hole). We digitize it.
- Small shell with a gear wheel, maybe found inside an adapter: VHS-C. We digitize it.
- Squarish, sliding door, says 8mm/Hi8/Digital8: the 8mm family. We digitize it.
- Matchbox-sized, says MiniDV: MiniDV. We digitize it, losslessly.
- Smaller than VHS, off-center window, pre-1988: Betamax. We don’t, but we’ll point you to someone who does.
Still unsure? Photograph the cassette next to a coin and email it to support@savevhs.com. Identifying tape is the easiest part of our job, and it’s free.
