Field Note · N° 06 · DIY corner
Digitizing VHS yourself: what the USB stick doesn’t tell you.
Yes, you can digitize VHS at home, and for some collections you absolutely should. We run a digitization service and we’ll still say it: three healthy tapes plus a working VCR plus a free weekend is a legitimate DIY project. This guide is the honest version of how to do it, where the cheap path actually loses quality, and how to recognize the point where doing it yourself stops making sense.
The $25 USB stick: what it actually does

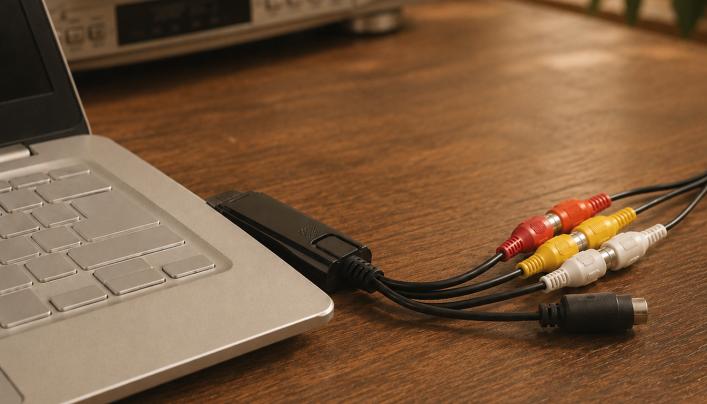

The typical DIY chain is a VCR’s RCA outputs into a USB capture dongle into a laptop. The dongle does one job: it converts the analog signal on the wire into digital video. Cheap ones do that job with three quiet compromises.
They digitize whatever arrives, jitter included. An analog tape signal is never perfectly stable, and a capture chip without correction records the wobble permanently. More on that below, because this is the single biggest quality difference.
They compress on the fly. Many budget sticks hand you an already-compressed stream. Compression artifacts stack on top of tape noise, and you can’t undo either later.
They drop frames silently. When the unstable tape signal briefly confuses the chip, a cheap dongle skips frames rather than re-timing them. The classic result: audio slowly drifting out of sync over a two-hour capture. If you’ve seen a DIY capture where voices lag the lips by half a second at the end, this is why.
The part nobody budgets for: the VCR
Here’s the uncomfortable DIY math: the dongle is the cheapest and least important link. The VCR decides most of the picture quality, and the VCRs available to a home user in 2026 are 20-plus-year-old survivors with worn heads and drifting alignment.
A tired deck plays a healthy tape as a snowy, unstable one. A misaligned deck adds noise the tape doesn’t actually have. Working higher-end decks (the kind with built-in line correction) sell used for several hundred dollars, untested, with no guarantee the heads have life left. If you already own a VCR that was stored well and used little, that’s your biggest DIY asset. Treat it kindly and clean it before the first pass.
The dongle is the cheapest link in the chain, and the least important. The deck decides the picture.
TBC: the three letters that separate the results
A time base corrector re-times the analog signal. Tape stretches, motors drift, and each video line arrives slightly early or late; on screen that reads as wavy verticals, tearing at the top of the frame, shimmering color and (downstream) those dropped frames and sync drift. A TBC buffers the signal and releases it at a steady rate, so the capture chip receives clean timing.
Consumer USB sticks have no TBC. Some 1990s prosumer VCRs have a line-level version built in, and standalone units have become collector-priced. This is the main reason two captures of the same tape can look like different tapes: our Basic tier runs Line TBC, correcting timing line by line, and the Advanced tier runs Full-Frame TBC, holding entire frames steady, which is what visibly worn tape usually needs.
Can you DIY without one? Sure, and on a well-stored tape played in a good deck the result can be respectable. On a stretched, much-loved family tape, the difference is not subtle.
Deinterlacing: why DIY captures look combed
Every consumer tape format recorded interlaced video: each frame is two half-pictures taken a fraction of a second apart. Old TVs displayed them natively. Modern screens don’t, so somebody has to weave the halves into full frames. If nobody does, movement grows comb-like horizontal teeth.
Cheap capture software either ignores the problem or applies the crudest fix: throwing away half of every frame, which throws away half the vertical resolution with it. Good motion-adaptive deinterlacing analyzes movement between the half-pictures and rebuilds full frames without the teeth and without the resolution loss. It’s free to DIY (the open-source tooling is excellent but has a learning curve measured in evenings), and it’s the “Advanced deinterlacing” step in our own pipeline.
A DIY setup that’s actually worth doing
- Use the best deck you can get your hands on, ideally one you know the history of. Clean the heads with an appropriate cleaning cassette or isopropyl swab before the first capture.
- Prefer S-Video over the yellow RCA plug if your deck offers it: it skips one lossy signal-mixing step and visibly cleans up color edges.
- Capture as lightly compressed as your dongle allows, deinterlace and denoise afterwards in software, and only then compress for storage. Never edit the only copy.
- Watch the full capture once. Dropped frames, sync drift and missed sections hide in the parts you skip.
- Budget honestly: a tape takes its runtime to capture, plus setup, plus processing, plus re-dos. Three tapes is a weekend. Fifteen is a hobby you didn’t plan to have.
When DIY is the right call, and when it isn’t
DIY makes sense when you have a few tapes in good condition, a trustworthy VCR, tolerance for tinkering, and footage where “watchable” is good enough. That’s a real category and we’re not going to pretend otherwise.
DIY stops making sense when the tape itself misbehaves. Squealing, sticking or shedding tape is likely sticky-shed syndrome, and every DIY playback attempt grinds oxide off the only copy that exists. Mold, crumpled sections and tapes your VCR “eats” belong in the same category: the risk isn’t a bad capture, it’s losing the recording. Fragile ME-formulation 8mm tapes and anything irreplaceable (weddings, people no longer with us) deserve a chain with real correction on the first pass, because the first pass may be the tape’s last good one.
The volume math matters too: at 15+ tapes, our per-tape pricing usually costs less than the gear you’d buy to do it properly once.
And if you start DIY and change your mind halfway through the box, that’s a normal outcome, not a failure. Capture the easy tapes yourself, send us the difficult ones, and compare the results side by side. We publish exact prices, our comparison with the box services is honest about when we’re not the right answer, and identifying a mystery cassette from a photo costs you an email: support@savevhs.com.
